Arduino - SW-420 Vibration Sensor

Shocks, bumps, and shaking are easy for us to feel but hard for a plain Arduino to notice on its own. The SW-420 vibration sensor module fills that gap: it watches for mechanical disturbance and reports it as a simple digital signal, which is handy for security alarms, impact loggers, or any project that needs to react when something gets bumped or shaken.

In this tutorial, we are going to learn:

How to wire a SW-420 vibration sensor module to Arduino
How to program Arduino to detect vibration or shock with the SW-420 module

Once the basic sketch is running, you can extend it to sound a buzzer, flash an LED, or send an alert whenever vibration is picked up.

Hardware Required

1	×	Official Arduino Uno
1	×	Alternatively, DIYables STEM V3, Fully Compatible with Arduino Uno R3
1	×	USB 2.0 cable type A/B (for USB-A PC)
1	×	USB 2.0 cable type C/B (for USB-C PC)
1	×	SW-420 Vibration Sensor Module
1	×	Jumper Wires
1	×	Recommended: Screw Terminal Block Shield for Arduino Uno
1	×	Recommended: Sensors/Servo Expansion Shield for Arduino Uno
1	×	Recommended: Breadboard Shield for Arduino Uno
1	×	Recommended: Enclosure for Arduino Uno
1	×	Recommended: Prototyping Base Plate & Breadboard Kit for Arduino UNO

Or you can buy the following kits:

1	×	DIYables STEM V3 Starter Kit (Arduino included)
1	×	DIYables Sensor Kit (18 sensors/displays)

Disclosure: Some links in this section are Amazon affiliate links. If you make a purchase through these links, we may earn a commission at no extra cost to you.
Additionally, some links direct to products from our own brand, DIYables .

About SW-420 Vibration Sensor

The SW-420 vibration sensor module reacts to shaking, bumping, or shock in its surroundings. Inside the module sits a small spring-based switch positioned close to a metal contact; when vibration disturbs the spring, an onboard LM393 comparator turns that mechanical disturbance into a clean digital signal, so Arduino only has to read a HIGH or LOW pin instead of dealing with noisy analog readings.

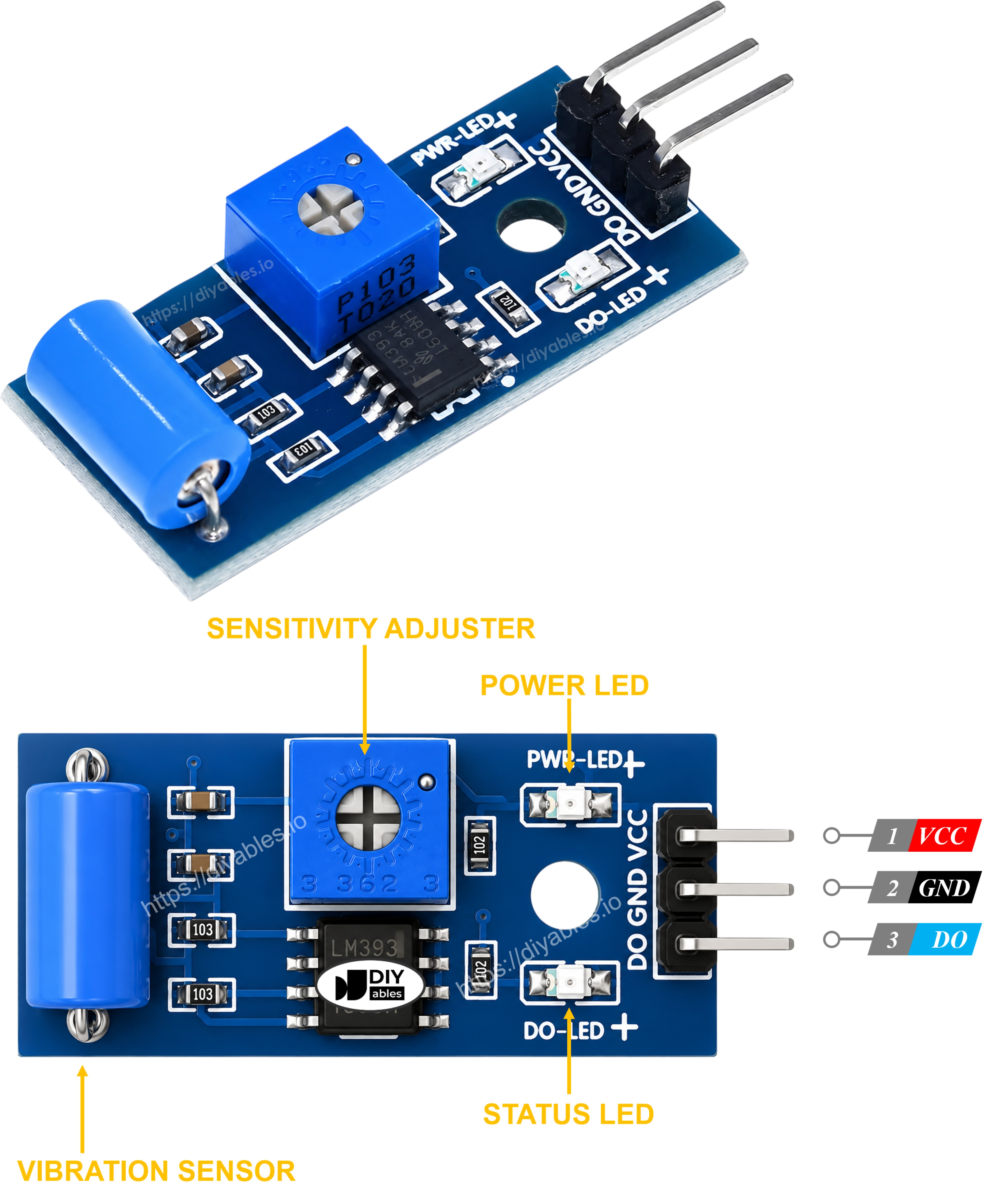

The SW-420 Vibration Sensor Pinout

The SW-420 module breaks out three pins:

VCC pin: needs to be connected to VCC (3.3V to 5V)
GND pin: needs to be connected to GND (0V)
DO pin: is an output pin: LOW while everything is still, HIGH the moment vibration or shock is detected. This pin needs to be connected to Arduino's input pin.

image source: diyables.io

Two LEDs sit on the board:

One LED indicator for power
One LED indicator that lights up whenever the DO pin goes HIGH (vibration detected)

A small onboard potentiometer lets you dial the sensitivity up or down, so light taps or only stronger shocks can trigger the output, depending on how you turn it.

How It Works

While the module sits still, the spring switch stays open, the comparator keeps its output LOW, and the trigger LED stays off.
Once vibration or shock disturbs the spring, the switch closes momentarily, the comparator drives the output HIGH, and the trigger LED lights up.

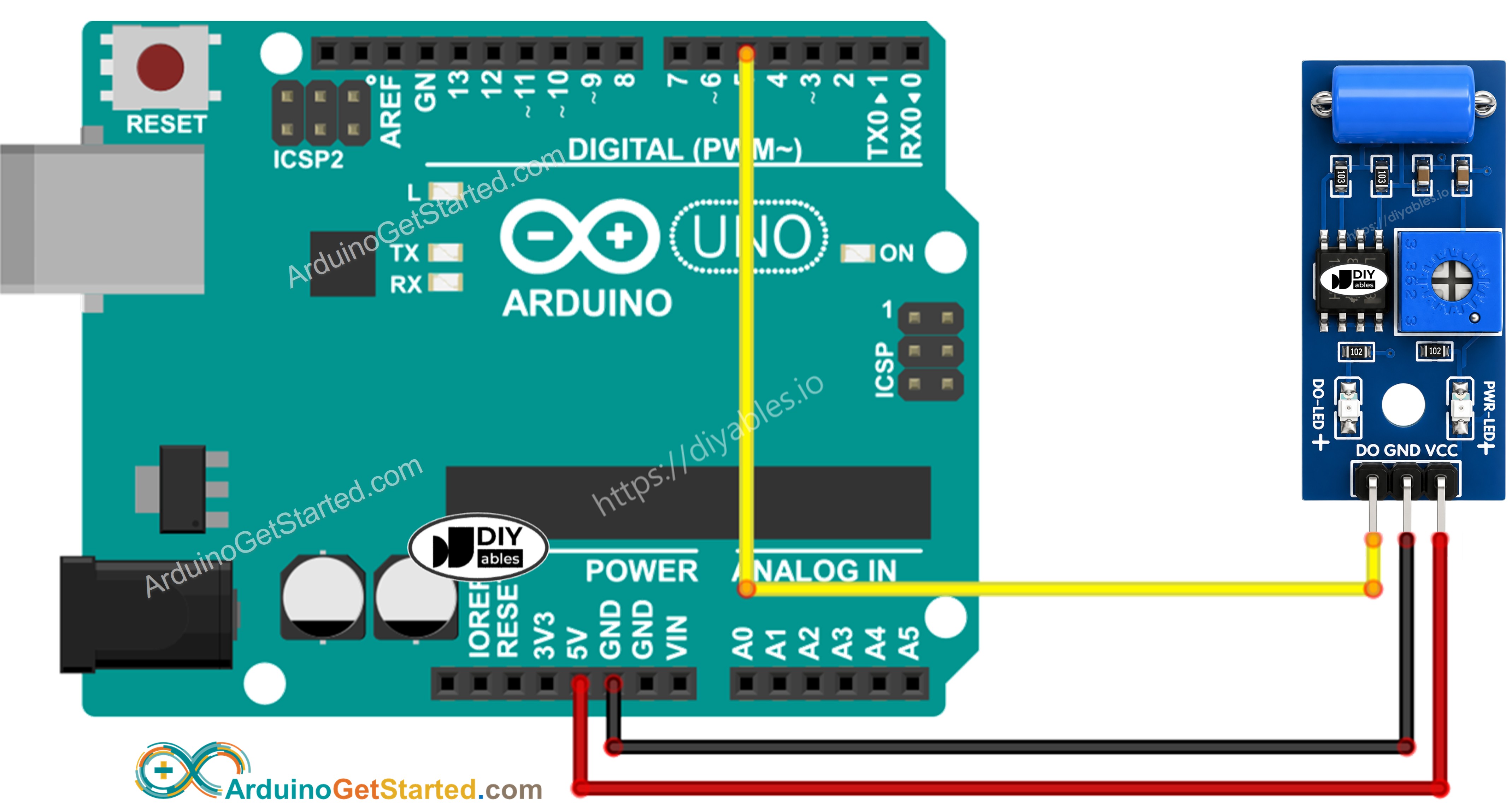

Wiring Diagram

This image is created using Fritzing. Click to enlarge image

How To Program For SW-420 Vibration Sensor

Sets the Arduino pin to digital input mode with pinMode() function. For example, pin 5

pinMode(5, INPUT);

Gets the current logic level of that pin with digitalRead() function.

int vibrationState = digitalRead(5);

Arduino Code - Detecting vibration

/* * Created by ArduinoGetStarted.com * * This example code is in the public domain * * Tutorial page: https://arduinogetstarted.com/tutorials/arduino-sw-420-vibration-sensor */ // Arduino's pin connected to DO pin of the SW-420 vibration sensor #define SENSOR_PIN 5 int previousState = LOW; // the previous reading from the input pin (LOW = idle) int currentState; // the current reading from the input pin void setup() { // initialize serial communication at 9600 bits per second: Serial.begin(9600); // initialize the Arduino's pin as an input pinMode(SENSOR_PIN, INPUT); } void loop() { // read the state of the input pin: currentState = digitalRead(SENSOR_PIN); if (previousState == LOW && currentState == HIGH) Serial.println("Vibration detected!"); else if (previousState == HIGH && currentState == LOW) Serial.println("Vibration stopped."); // save the current state for the next loop previousState = currentState; }

Quick Steps

Copy the above code and open with Arduino IDE
Click Upload button on Arduino IDE to upload code to Arduino
Tap or shake the SW-420 module gently
See the result on Serial Monitor.

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'Arduino Uno' on 'COM15')

New Line

9600 baud

Vibration detected! Vibration stopped. Vibration detected! Vibration stopped.

Ln 11, Col 1

Arduino Uno on COM15

From here, you could trigger a buzzer, light up an LED, or push a notification whenever vibration shows up. You can find more information and step-by-step instructions in the tutorials provided at the end of this tutorial.
